产品描述
| 尺寸 | 7'' |
| 外型尺寸 | 164.8x99.6 |
显示区域 | 151.61x84.7 |
透光率 | ≥76% |
| 表面硬度 | 3H |
操作压力 | 50-120g |
工作温度 | -10℃^60℃ |
触屏结构 | F+G (Glossy Surface) |
使用寿命 | 1,000,000 times |
其他尺寸
以下并非全部尺寸，如您需要的尺寸不在以下表格中，请联系我们告知您需要的具体尺寸
| 尺寸 | 外型尺寸 | 显示区域 | 透光率 | 表面硬度 | 操作压力 | 工作温度 | 触屏结构 | 使用寿命 |
| 2.4‘’ | 42.72x59.86 | 38.12x50.36 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G（glossy surface) | 1,000,000 times |
| 3.5‘’ | 75.5x72.5 | 63x63 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G | 1,000,000 times |
| 4.3‘’ | 104.7x64.9 | 97x55.5 | ＞82% | 3H | 50-120g | -10℃^60℃ | F+G | 1,000,000 times |
5'' | 120.2x75.2 | 111.1x67.91 | ≥76% | 3H | ≤100g | -20℃^70℃ | F+G（matt surface) | 1,000,000 times |
| 7‘’ | 164.8x99.6 | 151.61x84.7 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G（matt surface) | 1,000,000 times |
| 8‘’ | 182.5x141 | 161.5x120 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G（matt surface) | 1,000,000 times |
| 10.1'' | 235x143 | 225.72x128.28 | ≥76% | 3H | 50-120g | -10℃^60℃ | F+G（matt surface) | 1,000,000 times |
| 12'' | 261.4x198.8 | 250.9x190.8 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G（matt surface) | 1,000,000 times |
| 15'' | 328x252 | 309x233 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G（matt surface) | 1,000,000 times |
| 21'' | 495x291.6 | 478.64x270.11 | ≥76% | 3H | 50-120g | -10℃^50℃ | F+G | 1,000,000 times |
| 10.4"’ | 225.4x174 | 213x160.2 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G（matt surface) | 1,000,000 times |
| 15.6" | 363.8x215.9 | 346.83x196.14 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G | 1,000,000 times |
| 17" | 356.5x290 | 338.5x271.4 | ≥76% | 3H | 50-120g | -20℃^70℃ | F+G | 1,000,000 times |
-

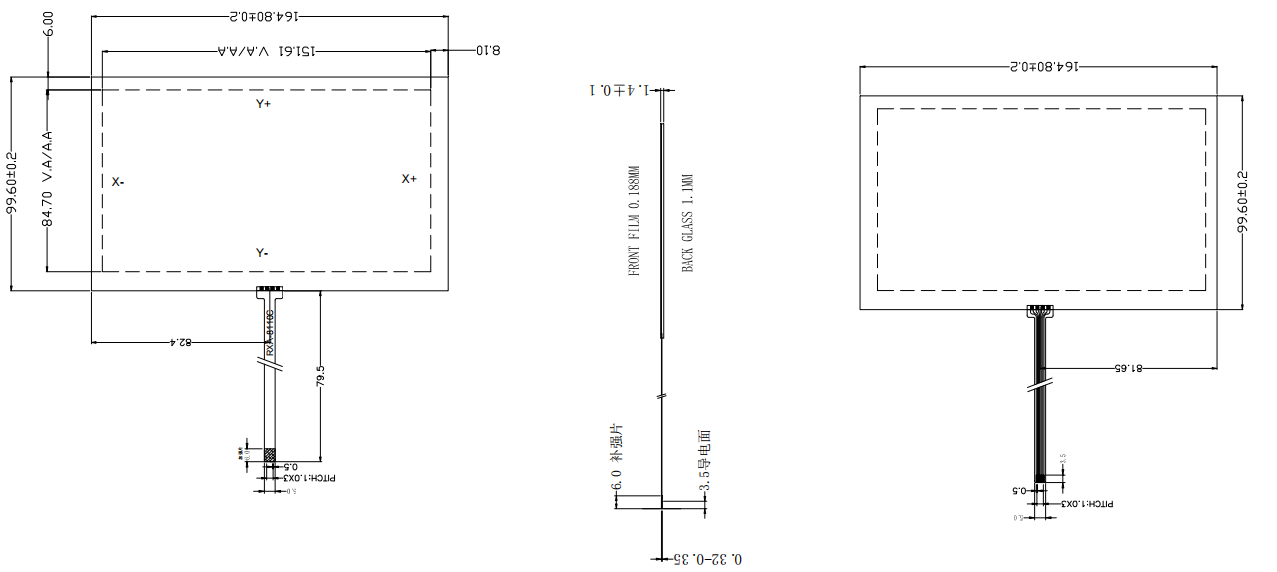

四线 TIAN-070002-03 规格书
