description
| Size | 1.3'' |
| Resolution | 320x320 |
A.A.(mm)W*H | 33.12*33.12 |
Luminance(cd/m2) | 350cd/m2 |
| Interface | MIPI |
Operating Temperature(°C) | -20℃~+70℃ |
Other size we have
The following are not all sizes. If the size you need is not in the list, please tell us the size you need.
| Size | Resolution | A.A.(mm) W*H | Luminance (cd/m2) | Interface | Shape |
| 0.9'' | 320*240 | 11.52*20.16 | 200cd/m2 | 4-SPI | Strip |
| 1.9'' | 320*240 | 22.69*42.72 | 400cd/m2 | 3/4-SPI、 8080 parallel port、RGB | Strip |
| 1.54'' | 320*240 | 27.72*27.72 | 300cd/m2 | SPI | Square |
| 2.1'' | 240*320 | 53.28*53.28 | 250cd/m2 | 18bit RGB | Round |
| 2.36'' | 480*480 | 60.00*60.00 | 650cd/m2 | MIPI 17PIN | Round |
| 3.46'' | 240*320 | 33.966*81 | 330cd/m2 | MIPI、16bit-RGB | Strip |
| 4.0'' | 320*320 | 71.86*70.18 | 400cd/m2 | 18BIT RGB | Square |
| 4.0'' | 240*320 | 71.93*71.93 | 400cd/m2 | RGB、MIPI | Square |
| 4.0'' | 320*480 | 45.52*91.04 | 400cd/m2 | MIPI | Strip |
| 6.8'' | 480x1280 | 60.22* 160.59 | 450cd/m2 | MIPI | Strip |
-

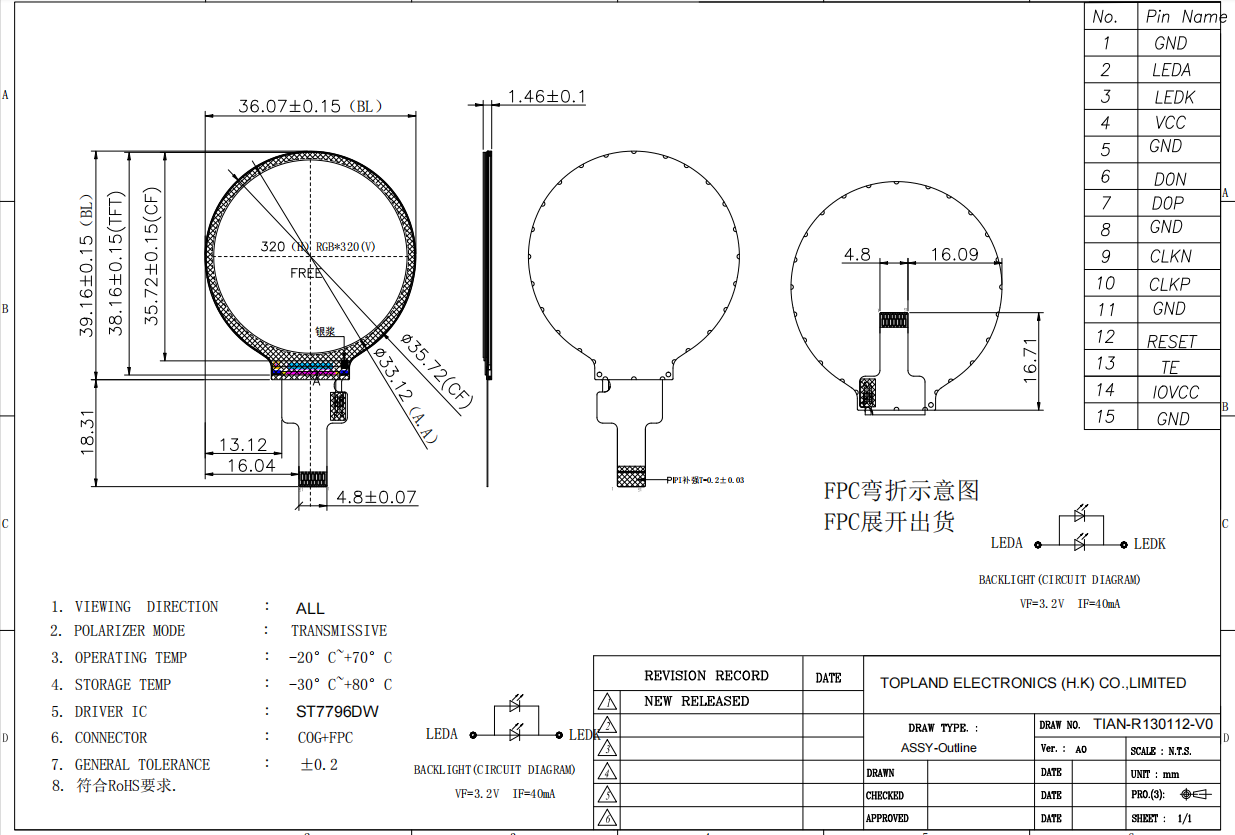

TOPLAND 13inch round LCD module specification
